- Long-term measurements to Pressure variation within the duct or pipe

  - Pressure measurements within the various pipelines and gas pipe

  - Built-in FBG sensor for temperature compensation

  - Effective cost saving

    : Compared with other companies of which FBG Pressure Gauges are operated broad bandwidth in the range of

      wavelength by using "TWO FBG" sensors, our sensors can be operated at half of that because they use

      only "ONE FBG" for Pressure measurement and have high accuracy. Therefore Interrogator cost can be reduced.

  - Resolution : ¡¾ 0.05 %F.S

  - Accuracy : ¡¾ 0.25 %F.S

  - Reflectivity : ≧ 70 %

  - Operating temperature : - 10 ~ 50 ¡É

  - FWHM (-3dB point) : ≦ 0.1 nm

  - Dimension : ∅34 * 210

  - Wavelength range : 1,511 ~ 1,584 nm

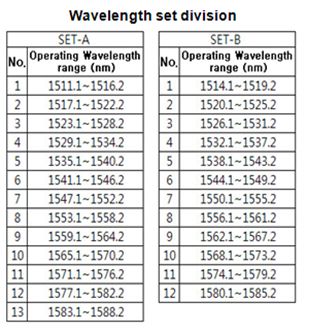

    ¡Ø Choose favorable wavelength from the following set division
