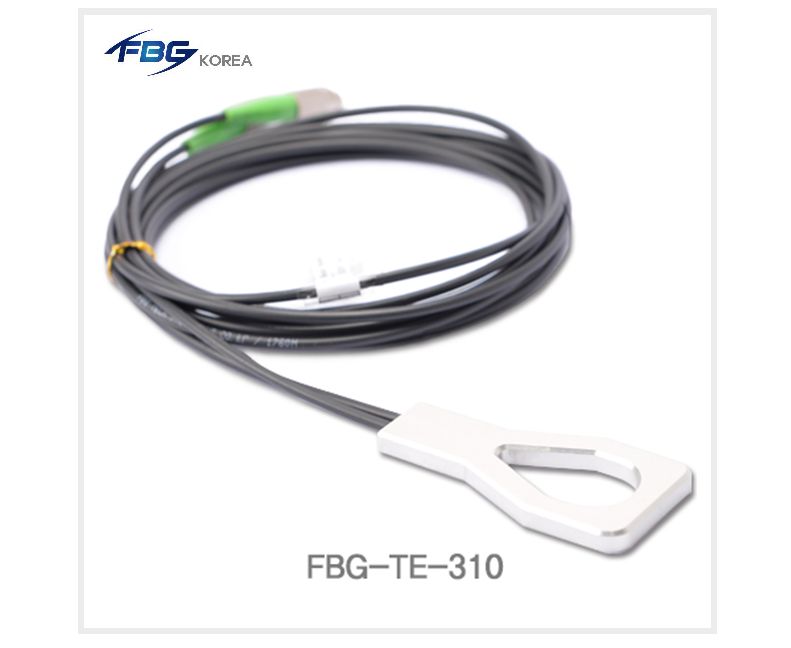

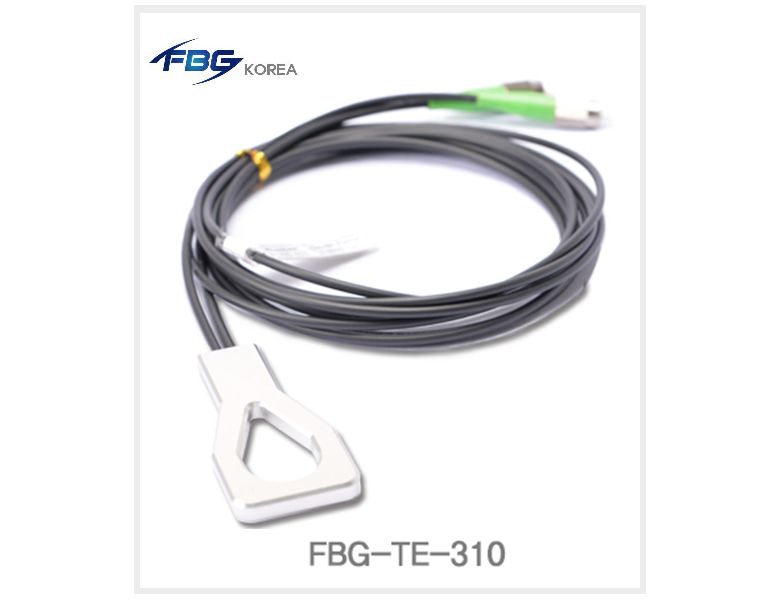

FBG Temperature sensor
FBG-TE-310
- Temperature measurements inside and outside of the structures
- Water temperature measurements of dams, banks, structures
- Long-term temperature measurements in a humid place
- Safety evaluation on temperature change of structures
- Temperature measurements during the curing of concrete structures
- Measurement range : - 20 ~ 80 ℃
- Resolution : 0.1 ℃
- Reflectivity : ≧ 70 %
- Gauge factor : 9.7 pm/ ℃
- FWHM (-3dB point) : ≦ 0.1 nm
- Dimension : 54 * 31 * 5 mm
- Wavelength range : 1,511 ~ 1,584 nm

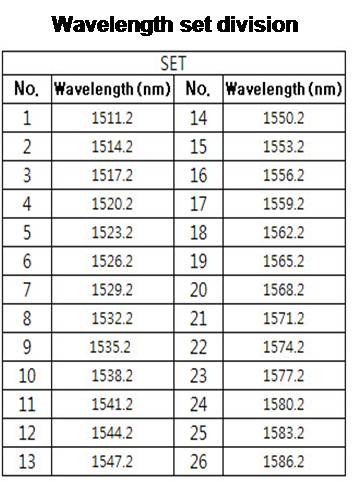

※ Choose favorable wavelength from the following set division
